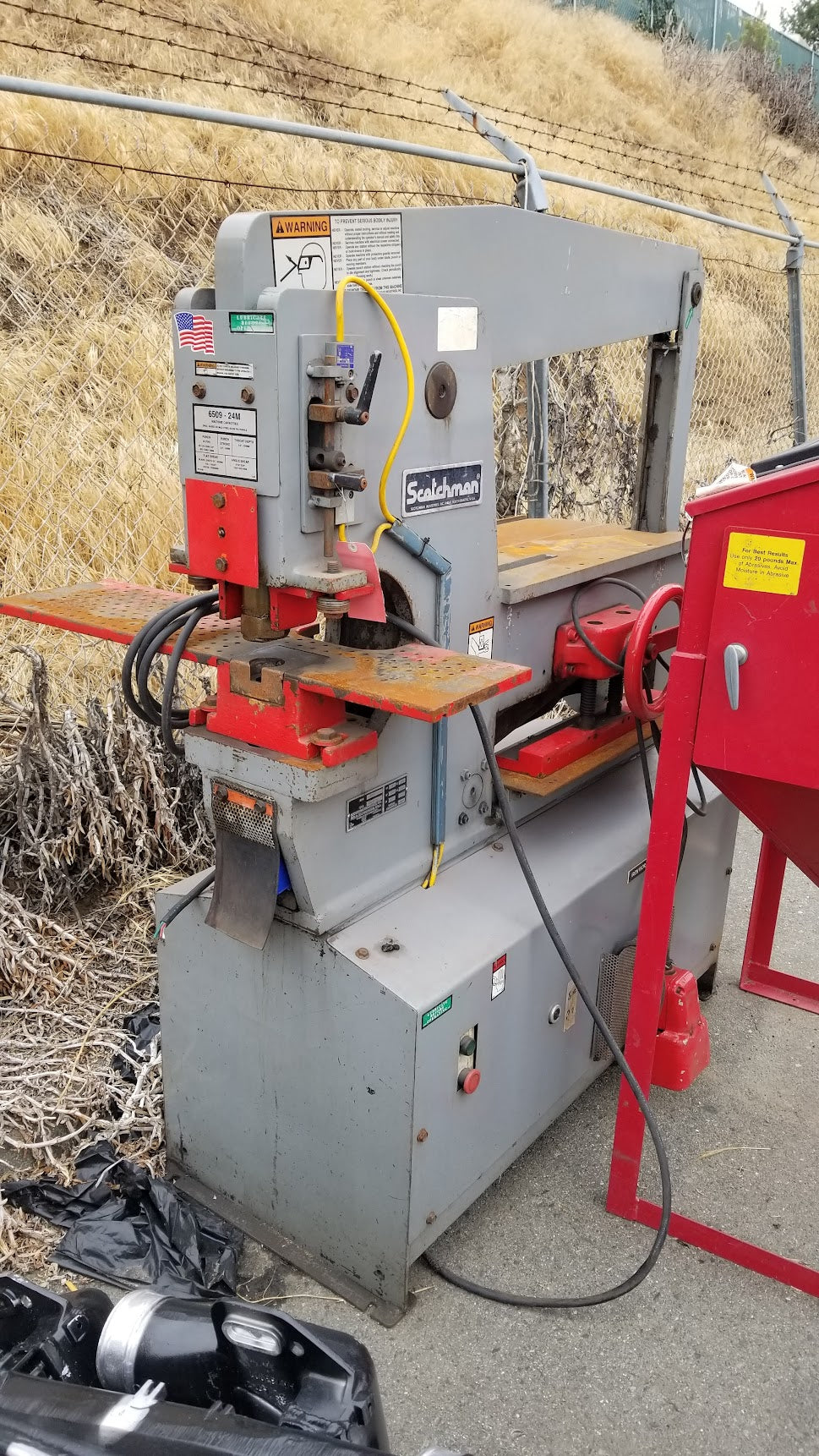

SCOTCHMAN MODEL 6509 65 TON IRON WORKER

SCOTCHMAN MODEL 6509 65 TON IRON WORKER

$5,500.00 USD
$5,500.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Ver todos los detalles

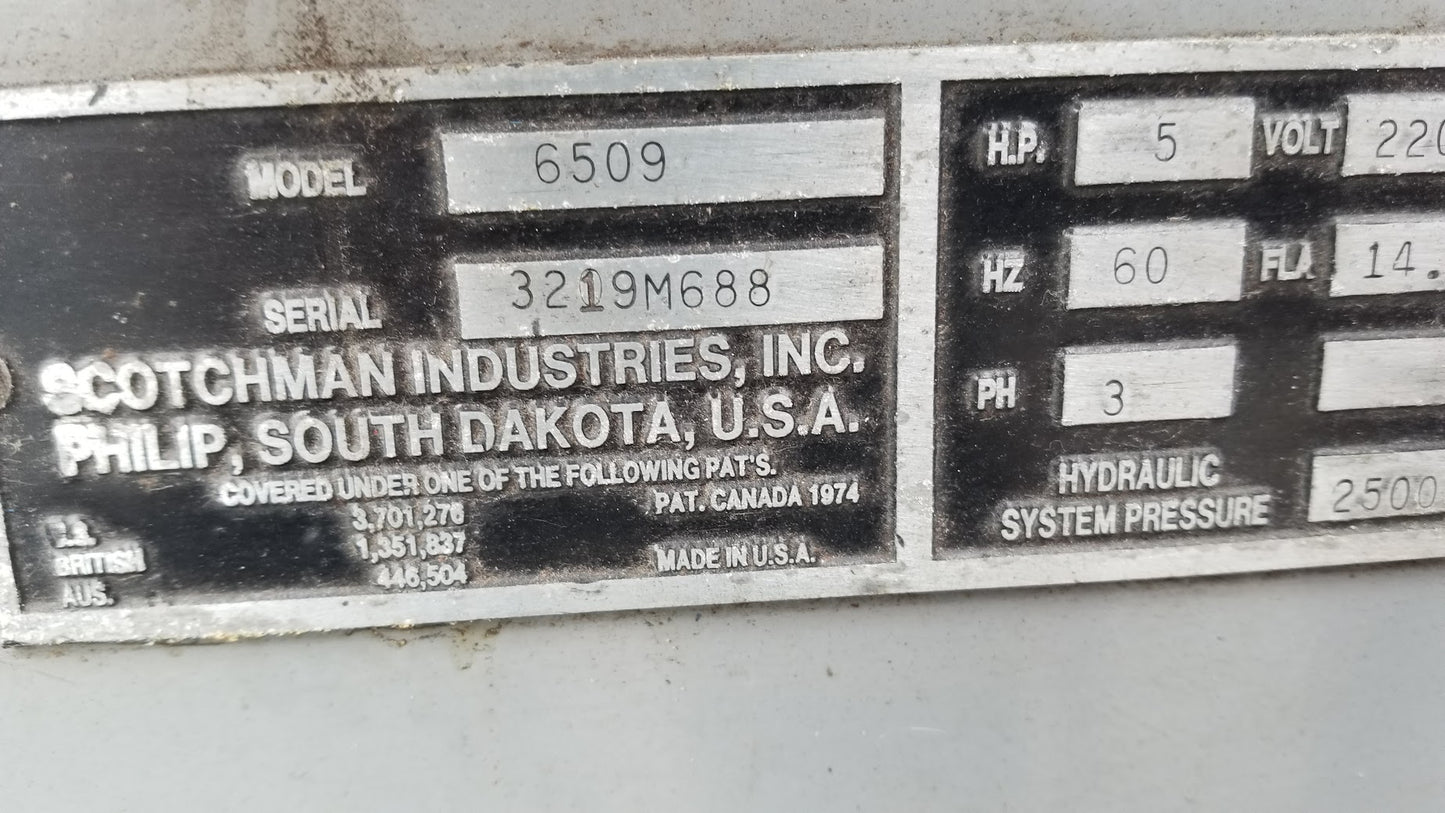

SCOTCHMAN INDUSTRIES INC  65 TON IRON WORKER

NO TOOLING INCLUDED

WORKING UNIT

compare new unit cost at $24,000

Sold As Is

Local Pickup Only


Call (888) 934-1627 for a shipping quote or for more information

Located

San Diego, CA

Specifications

TRKparts

•Stations: 4
•Rated Capacity (tons): 65
•Punching Capacity (Std): 1-1/4 inch OD in 1/2 inch plate
•Punching Throat Depth (inches): 9
•Flat Bar Shearing Max Width (inches): 1/4 x 24
•Flat Bar Shearing Max Thickness (inches): 1 x 6
•Angle Shear Max Size 90 Deg (inches): 6 x 6 x 3/8 or 5 x 5 x 1/2
•Angle Shear Max Size 45 Deg (inches): 3 x 3 x 3/8
•Throat Depth (inches): 9
•Special Tooling Max Cap: 4
•Pipe Notcher Capacity (inches): 3/4 to 2 inch
•Rectangular Notcher Capacity (inches): 2 x 2.5 x .375
•90 Deg V Notcher Capacity (inches): 6 x 6 x .313
•Round Bar Shear Capacity (inches): 1/4 to 1-1/4
•Square Bar Shear Capacity (inches): 1/4 to 1
•Square Tube Shear Capacity (inches): 1/2 to 2
•Picket Tool Capacity (inches): 1/2 to 1
•Cycle Time: 1/4 inch stroke = 40 spm; 3/4 inch stroke = 17 spm
•Motor (Std): 5 hp, 220/440 volt, 3 phase
•Motor (Opt): 5 hp, 220 volt, 1 phase
•Hydraulics: 2605 psi
•Weight (pounds): 2750
•Dimensions (LxWxH): 24 x 60 x 66

Terms and Conditions

Sold As Is

Local Pickup Only


Call (888) 934-1627 for a shipping quote or for more information

Located

San Diego, CA
