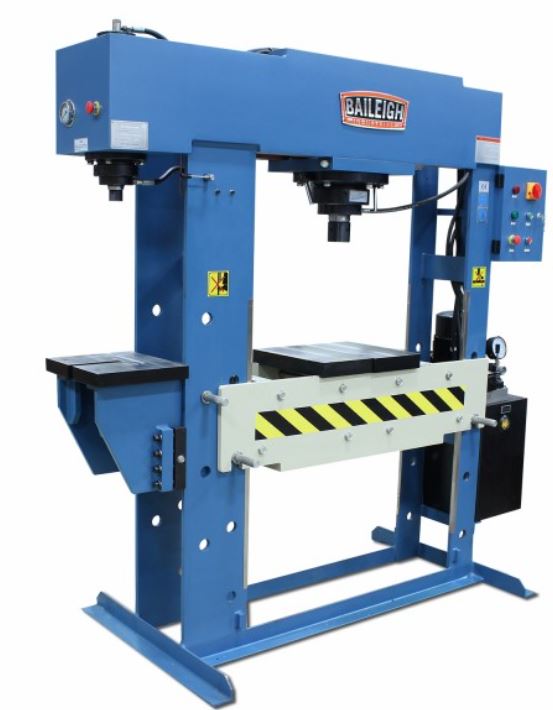

BAILEIGH TWO STATION HYDRAULIC PRESS HSP-60M-C
BAILEIGH TWO STATION HYDRAULIC PRESS HSP-60M-C
Regular price
$15,979.00 USD
Regular price
Sale price
$15,979.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
If you’ve outgrown your pneumatic press, this hydraulic workshop press offers gives you the extra power of a 5.25 hp motor and the rigid accuracy of a fully-welded heavy steel plate frame. Another plus of the HSP-60M-C is the abilty to use a second 24 ton station with an open C-frame design. Both presses come in one compact design.
- Unique two station design.
- 60-ton capacity on main press.
- 24-ton capacity on side press.
- 41.25” working width on main press
- 7.5” cylinder moves left and right within the frame, ideal for off-center parts.
- Controlled by piston-style hydraulic pump.
- C Frame Hydraulic Press includes 2-piece V-block set.
- Pressure gauge comes standard on both presses.
- Welded steel structure withstands the machine’s full force without flexing.
- Baileigh covers this hydraulic workshop press with a 1-year parts warranty as well as lifetime technical support by phone.
Specifications
TRKparts
| Item Number | HSP-60M-C |
|---|---|
| Return Speed | .303" / sec. |
| Motor | 5.25 hp |
| Piston Head Diameter | 3.15" (Main), 1.77" (Side) |
| Pump Speed | 1.85 gal/min |
| Oil Capacity | 13 gal. |
| Included Accesories | Included Accesories |
| Working Speed | .32" / sec. (Main), .75" / sec. (Side) |
| Working Width | 41.3" (Main) |
| Maximum Capacity | 60 ton (Main), 24 ton (Side) |
| Cylinder Stroke | 11.8" (Main), 11.75" (Side) |
| Cylinder Movable | Yes (Main only) |
| Cylinder Diameter | 7.55" (Main), 3.95" (Side) |
| Distance From Table To Ram | Min. 8" - Max. 38" (Main), Min. 9.84" - Max. 38.97" (Side) |
| Power | 220 Volt Three Phase |
| Shipping Weight | 2960lbs |
| Shipping Dimensions (Inches) | 96x48x89 |
