BAILEIGH MANUALLY OPERATED COLDSAW CS-225M

BAILEIGH MANUALLY OPERATED COLDSAW CS-225M

Regular price $1,519.00 USD
Regular price Sale price $1,519.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

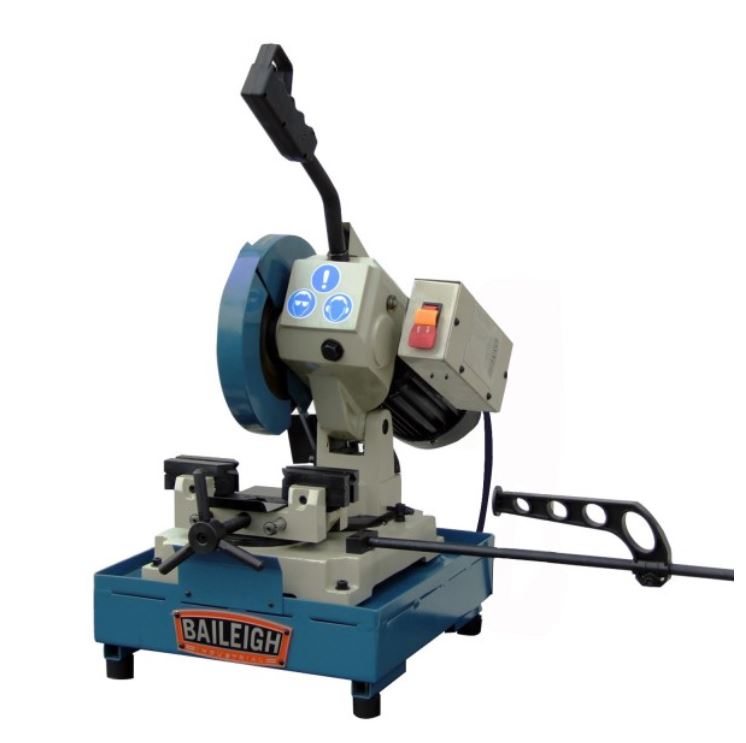

The CS-225M makes burr-free cuts like only a cold saw can. This portable benchtop saw has a cast base and a flood coolant system, often found only on more expensive models.


  • Accepts a 9” blade (included).
  • It’s our smallest cold saw.
  • 2.5” round tube maximum capacity at 90°.
  • Miters up to 45° to the left.
  • Spins at 50 rpm, optimal for cutting many different kinds of materials.
  • Cuts tubing, pipe, angle iron, solids, and much more.
  • 1 hp motor runs on 110 volts, so you can plug it in anywhere.
  • Self-centering American-style vise keeps the material in the right position with respect to the blade.
  • Vise grips the material on both sides of the blade for extra support.
  • Direct drive gearbox (encased in a fully machined cast iron housing) ensures proper alignment and a long lifetime of use.
  • Stop rod helps with repeatability for small production runs.
  • Heavy-duty cast iron base stabilizes the machine, so that it can deliver accurate cuts for many years.
  • Flood coolant system maintains high cut quality and helps both the saw and its blades last longer.
  • Replacement parts are in stock at our Wisconsin headquarters, so you can get them quickly.
  • Covered by a 1-year warranty.
  • Includes lifetime technical support by phone from a team with hands-on metalworking experience.

Recommended for:

  • Hobbyists and small fab shops.
  • Larger maintenance or R&D shops that need an entry-level cold saw.
  •

Specifications

TRKparts

Item Number CS-225M-V2
Max. Blade Diameter 9"
Operation Manual
Head Miter 45° Left / 30° Right
Round Solid at 45° 1.5"
Square Tube at 45° 2" x 2"
Round Tube at 45° 2.125"
Round Solid at 90° 1.75"
Square Tube at 90° 2.25" x 2.25"
Round Tube at 90° 2.5"
Coolant System Yes
Vice Style Dual Action, Self Centering
Max. Vice Opening 2.75"
Head Style Pivot
Arbor Size 1.26"
Motor 1 hp
Blade Speed 50 rpm
Power 110V
Shipping Weight 200lbs
Shipping Dimensions (Inches) 28x20x25

* specifications subject to change without notice.
