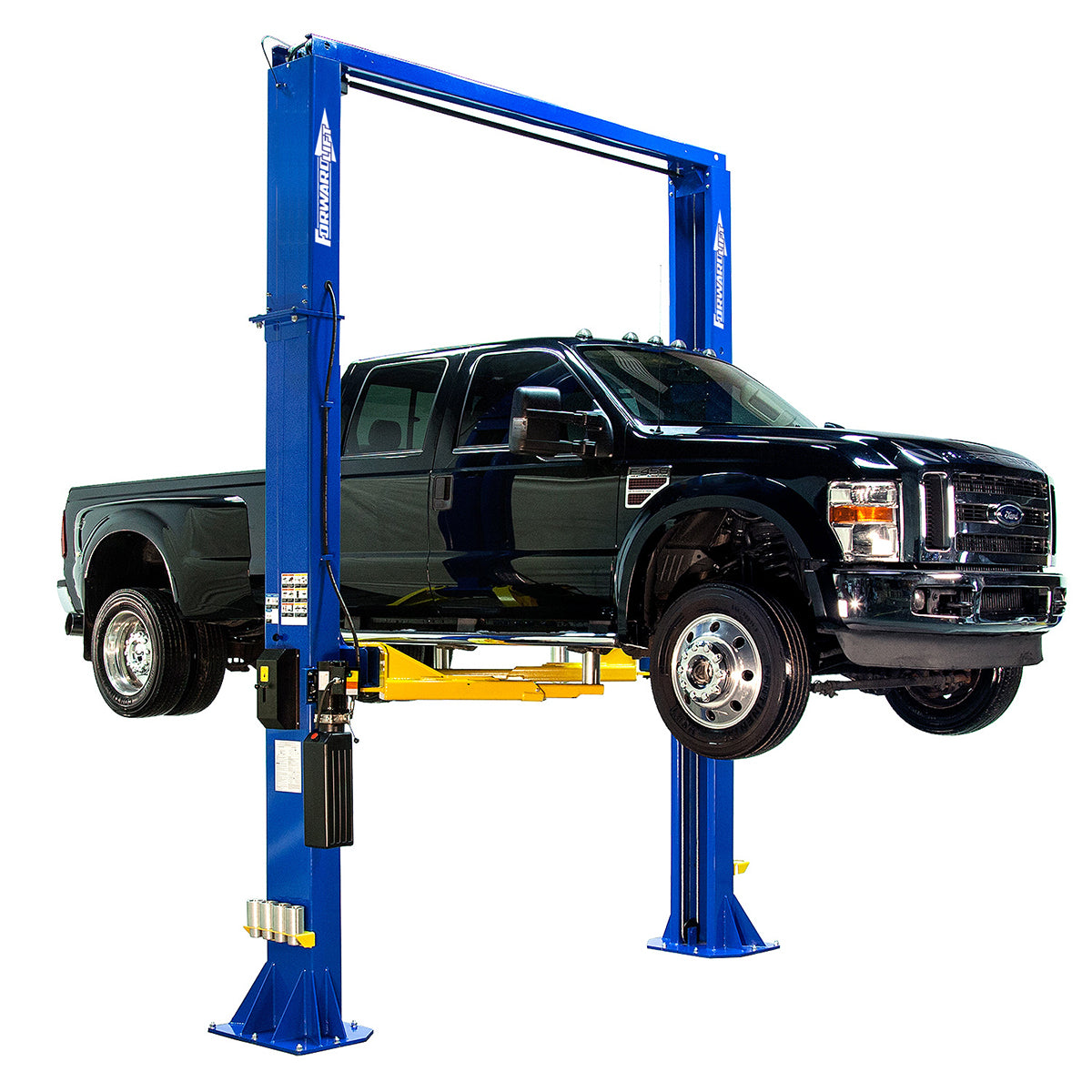

FORWARD DP18 – Heavy Duty Two-Post Lift
FORWARD DP18 – Heavy Duty Two-Post Lift
Couldn't load pickup availability
DP18 Heavy Duty Two-Post Lift Features:
The DP18 is constructed of high strength heavy gauge steel columns. Large gusseting on substantial base plate foundations provide the stability and support you want for a heavy truck lift. With a capacity of 18,000 pounds your shop can start working on work trucks, vans, or small buses along with everything else that rolls through the door.
Truck Adapter Extensions:
The DP18 comes with eight high strength aircraft grade aluminum truck adapter extensions. Four 5” and four 10” adapters allow you to lift a wide range of vehicles. These are heavy duty adapters without the “heavy”. Because they’re made of aluminum you’ll be able to place and maneuver them without strain. They have a convenient column bracket for storage.
Specifications
TRKparts
Specifications
| Specifications | DP18N000BL DP18N000RD |
DP18N001BL DP18N001RD |
DP18N002BL DP18N002RD |
|||
| Column Extensions | No Extensions | Standard Height | Extended Height | |||
| Arm Type | 2 Stage | 2 Stage | 2 Stage | |||
| Total Capacity | 18,000 lbs. (8164kg) | 18,000 lbs. (8164kg) | 18,000 lbs. (8164kg) | |||
| Rise* | 83-1/4” (2114mm) | 83-1/4” (2114mm) | 83-1/4” (2114mm) | |||
| Overall Height | 154-3/4” (3930mm) | 175″ (4445mm) | 199” (5054mm) | |||
| Height to Shut-Off | 147-1/4” (3735mm) | 167-1/4″ (4250mm) | 191-1/4” (4860mm) | |||
| Minimum Ceiling Height | 155-3/4” (3956mm) | 176″ (4470mm) | 200” (5080mm) | |||
| Overall Floor Width | 154-3/8” (3921mm) | 154-3/8” (3921mm) | 154-3/8” (3921mm) | |||
| Inside Column Width | 119-5/8” (3038mm) | 119-5/8” (3038mm) | 119-5/8” (3038mm) | |||
| Drive Through | 108-1/4” (2749mm) | 108-1/4″ (2750mm) | 108-1/4″ (2750mm) | |||
| Arm Reach | 38” (965mm) 61” (1549mm) |
38” (965mm) 61” (1549mm) |
38” (965mm) 61” (1549mm) |
|||
| Minimum Adapter Height | 5-1/2” (139mm) | 5-1/2” (139mm) | 5-1/2” (139mm) | |||
| Stackable Adapter Height (Low Extension) |
10-1/2” (266mm) | 10-1/2″ (266mm) | 10-1/2″ (266mm) | |||
| Stackable Adapter Height (High Extension) |
15-1/2” (393mm) | 15-1/2″ (393mm) | 15-1/2″ (393mm) | |||
| Voltage* | 208/230v, 20 amps | 208/230v, 20 amps | 208/230v, 20 amps | |||
| Amps | 20 | 20 | 20 | |||
| Motor | 2 HP/1Ø | 2 HP/1Ø | 2 HP/1Ø |
