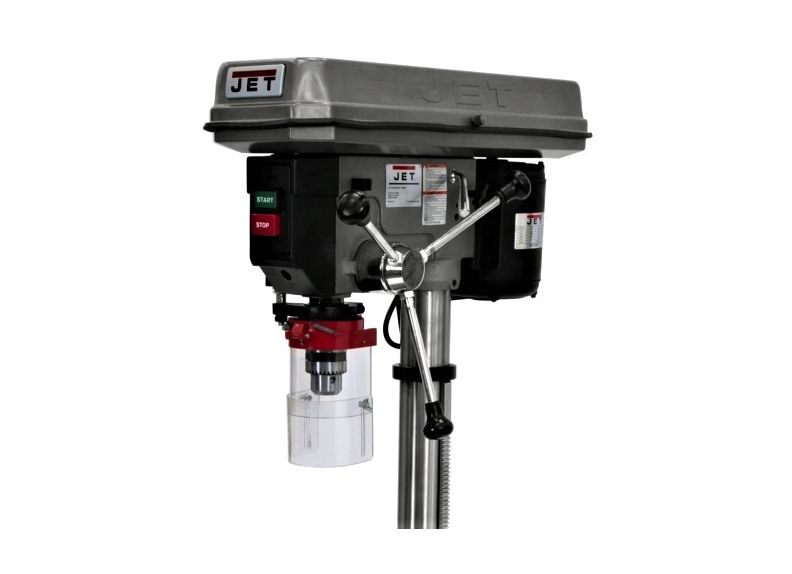

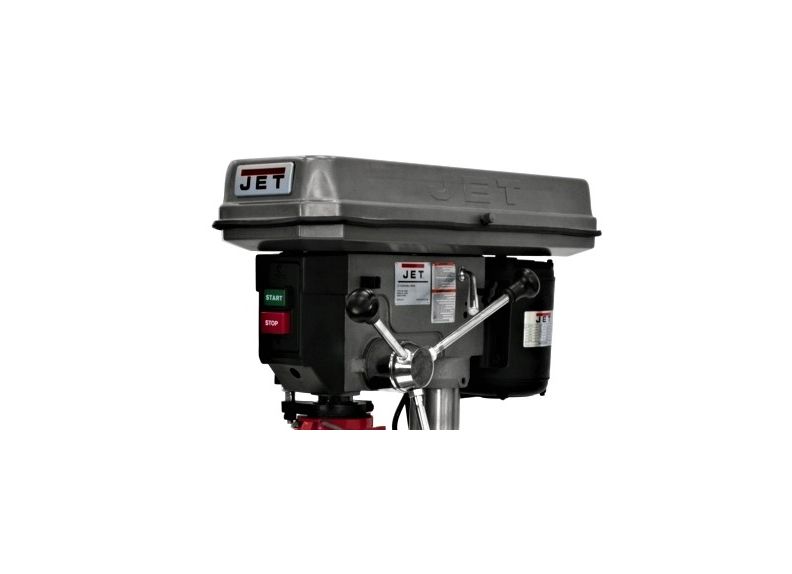

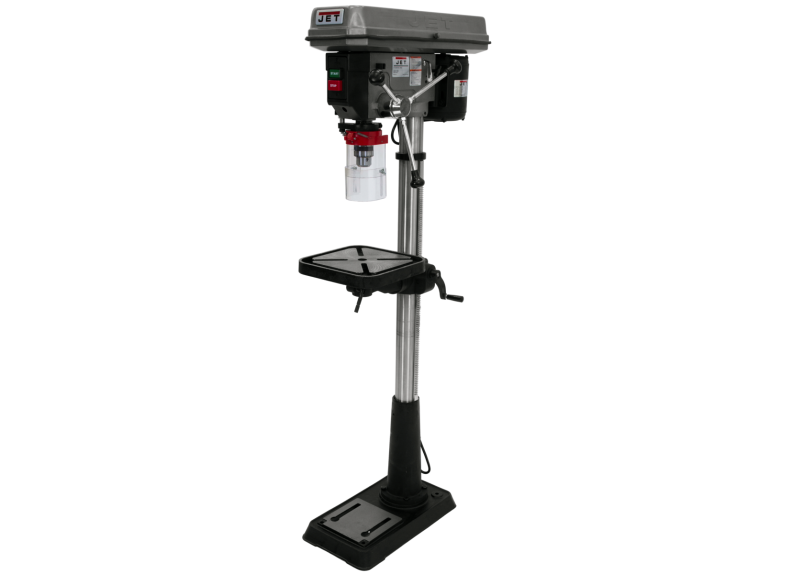

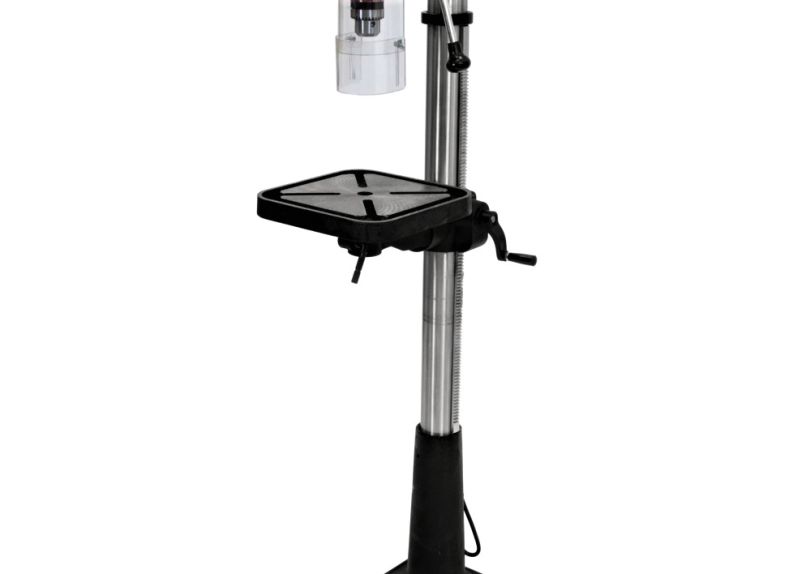

JET 354400 J-2500, 15" FLOOR MODEL DRILL PRESS 115V 1PH

JET 354400 J-2500, 15" FLOOR MODEL DRILL PRESS 115V 1PH

$995.00 USD
$995.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.
3-1/8" stroke for deep hole applications
Cast iron head
Constructed to provide a solid base for drilling
Large ground steel column for maximum head and table support
Large quill allows greater accuracy
Telescoping safety spindle guard
The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy

Specifications

TRKparts

Stock Number 354400
Base Dimensions (In.) 11 x 19-1/2
Column Diameter (In.) 2-7/8
Distance Column to Spindle (In.) 7-1/2
Drilling Capacity Cast Iron (In.) 5/8
Drilling Capacity Mild Steel (In.) 1/2
Drills to Center of Circle (In.) 15
Motor (HP) 3/4 HP, 115/230V, 1Ph
Number of Spindle Speeds 16
Overall Dimensions (L x W x H) (In.) 31 x 13 x 63
Prop 65 Cancer and Reproductive Harm
Range of Spindle Speeds (RPM) 200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630
Spindle Distance to Base (In.) 48
Spindle Distance to Table (Max.) (In.) 24
Spindle Taper (In. x TPI) MT-2
Spindle Travel (In.) 3-3/8
Style (Type) Belt Drive
T-Slots Number and Size (In.) 3 - 5/8
Table Size (L x W) (In.) 11-1/2 x 11-1/2
Table Travel (In.) 24
Weight (Lbs.) 167
Work Table Weight Capacity (Lbs.) 44
